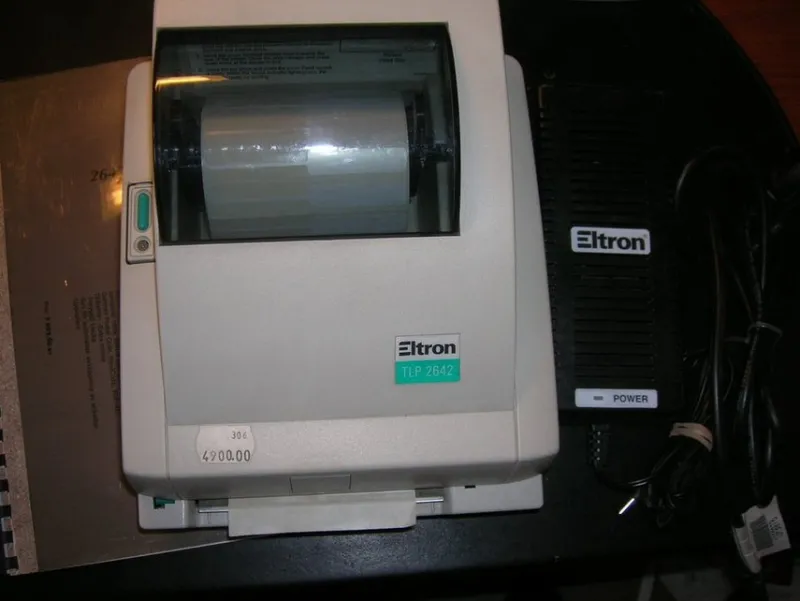

Etikettskrivare/Kvittoskrivare Eltron TLP2642

Eltron LP/TLP 2642 Printer Specifications General Specifications

Direct Thermal Print Method (TLP) Direct Thermal/Thermal Max.

Print Speed 2 inches per second (50 mm/s)

Dot Density 203 dpi (8 dots/mm)

Memory (std./max.) 128Kb / 512Kb

Media Width (min./max.) 1.12" (28mm) / 4.65" (118mm)

Media Diameter (max) 5.0" (127mm)

O.D. Print Width (max.) 4.09" (104mm)

Print Length (min.) 0.38" (9.7mm) (max. std.) 5.8" (147mm)* (max. opt.) 22.1" (561mm)

Ribbon Types (TLP only) wax, wax/resin, resin

Ribbon Core Diamter 0.75" (19mm)

O.D. Ribbon Widths 1.3" (33mm), 2.5" (64mm) 3.3" (84mm), 4.3" (109mm)

Custom widths available on request

Ribbon Roll Capacity 1.39" (35.3mm) max. O.D. on a 0.5" (12.5mm) I.D. core

Ribbon Length approx. 3600" (91m)

Graphic Features Lines, boxes and graphics

Communications Interface Centronics parallel or RS232C serial

Dimensions (W x D x H) 7.90" x 8.90" x 6.75 (200mm x 226mm x 171mm)

Printer Weight 4 lbs (1.81 Kg) Shipping Weight 6 lbs (2.72 Kg)

Common Features Resident Bar Codes Code 39 Extended Code 39 Code 93 Code 128 UCC Code 128 Subsets, A, B, and C Codabar Interleaved 2 of 5 UPC-A, UPC-E, 2 and 5 digit add-on UPC Shipping container code EAN-8, EAN-13, 2 and 5 digit add-on EAN-128 POSTNET German Postal Code MaxiCode PDF-417 Bar codes printed with or without human readable text Bar codes can be printed in four directions: 0°, 90°, 180° and 270° Fonts International character sets available Five alpha-numeric fonts from .049" (1.25mm) to 0.23" (6.0mm) high All fonts are expandable vertically and horizontally Fonts can be printed in four directions: 0°, 90°, 180° and 270° Smooth soft fonts can be down-loaded from Create-A-Label Tools or Create-A-Label 3 Programming Language Eltron's Programming Language 2 (EPL2) Software (included) Create-A-Label Tools and Windows¨ Drivers

Operating Temperature 40°F to 105°F (5°C to 40°C), 10-90% Storage Temperature -40°F to 140°F (-40°C to 60°C), 10-90% Humidity 10% to 90% non-condensing

Electrical Nominal Voltage: 100V/240V, 60/50 Hz (Switcher) Complies with FCC class A and CE (International models only) standards Complies with FCC class A and CE (International models only) Meets UL, CUL,TUV requirements Options and Accessories RAM Memory Expansion Real Time Clock (time and date) Label Present Sensor (peel mode) Reflective Sensor for use with black stripe marks Twinax Converter Cutter Rewinder Keyboard Display Unit (KDU) for stand-alone printing applications Create-A-Label 3 for DOS software Create-A-Label 3 for Windows¨ software Asian character sets (Chinese, Japanese, Korean) available *With standard memory, label widths can be 6.0"L x 3.9"W.

Levereras med kraftaggregat

Vikt 3,5 Kg Paket

Alla bud inkl 25% moms. Kvitto med moms specificerad bifogas. Goodies AB org. nr:556347-7156.

Titta även på våra övriga auktioner spar porto

OBS Fotot stämmer inte alltid med texten när det gäller tex kablars längd det är alltid texten som gäller.
